Gealan Smoovio
A space-saving uPVC sliding patio door system with a compact profile and smooth, low-effort operation — Gealan's answer to a slider that doesn't need the lift mechanism of a full HST door.
Request a QuoteSpecifications
| System | Gealan Smoovio (Germany) |
|---|---|
| Frame Material | uPVC, 150mm (5.9") construction depth |
| U-Factor | As low as 0.15 Btu/h·ft²·°F |
| Sound Reduction | Up to 43 dB (Rw) |
| Max Size | 13'1" wide × 7'10" tall (4000 × 2380mm) per unit |
| Security | RC1, RC2, and RC2N burglar-resistance ratings available |
| Hardware | Roto Patio Inowa sliding hardware |
| Warranty | 10-year frame, 10-year glass |
Details

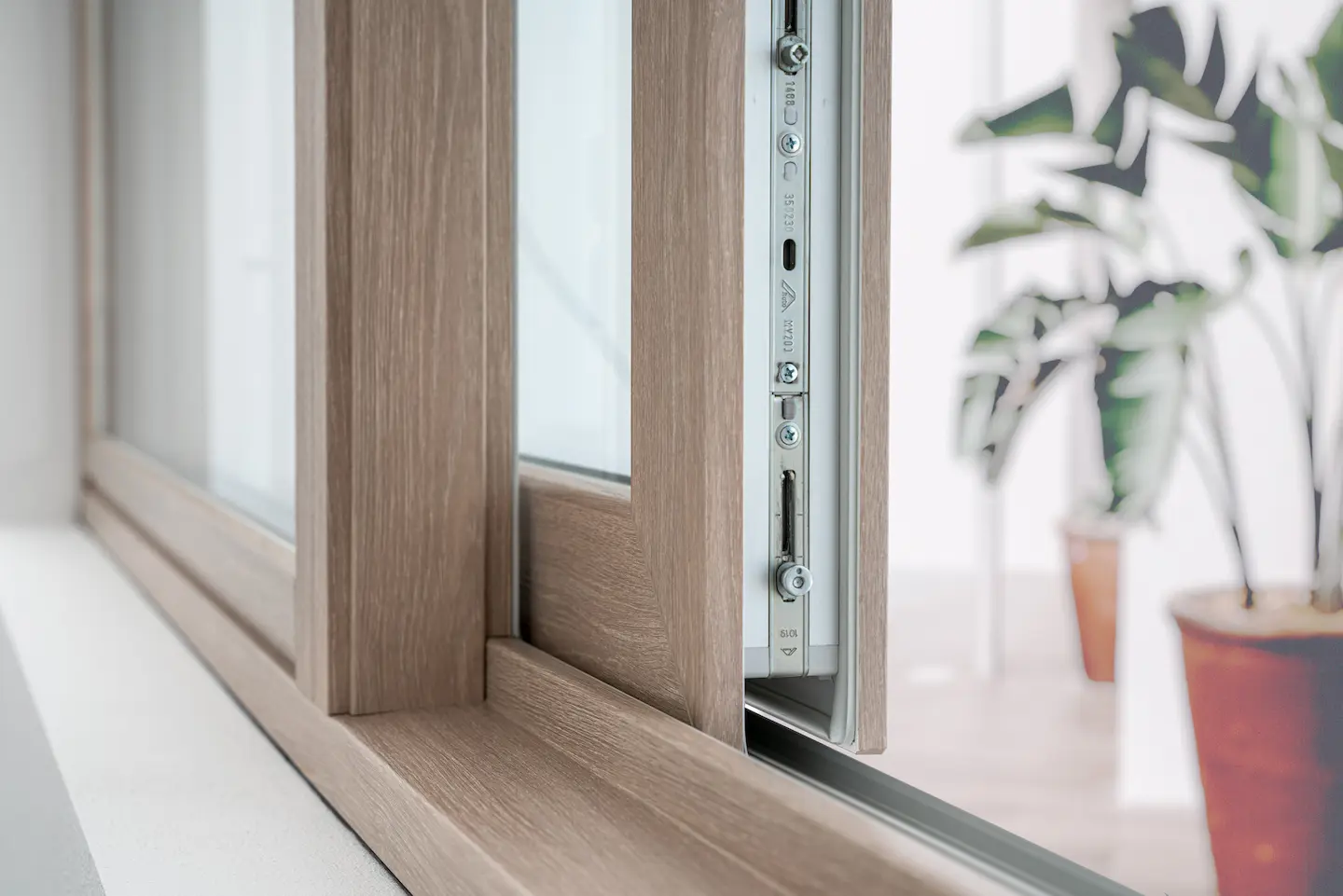

Smoovio is our standard recommendation when a project wants a straightforward sliding patio door rather than the heavier hardware and cost of a lift-and-slide system. Newly developed hinge parts, profile geometry, and seals let the sash glide smoothly without the pivot clearance older sliding systems needed, so the door takes up less room both in the track and around the opening.
At 150mm deep, the frame holds U-factors as low as 0.15 Btu/h·ft²·°F and up to 43 dB of sound reduction, with RC1 through RC2N security ratings available depending on the hardware package. It’s a practical, cost-effective slider for everyday indoor-outdoor openings up to 13 feet wide.
