Linear
A slim, minimalist tilt-and-turn window built on the German Gealan Linear 74mm profile — clean straight lines, a 6-chamber uPVC frame, and top-tier thermal and acoustic performance.
Request a QuoteSpecifications
| System | Gealan Linear (Germany) |
|---|---|

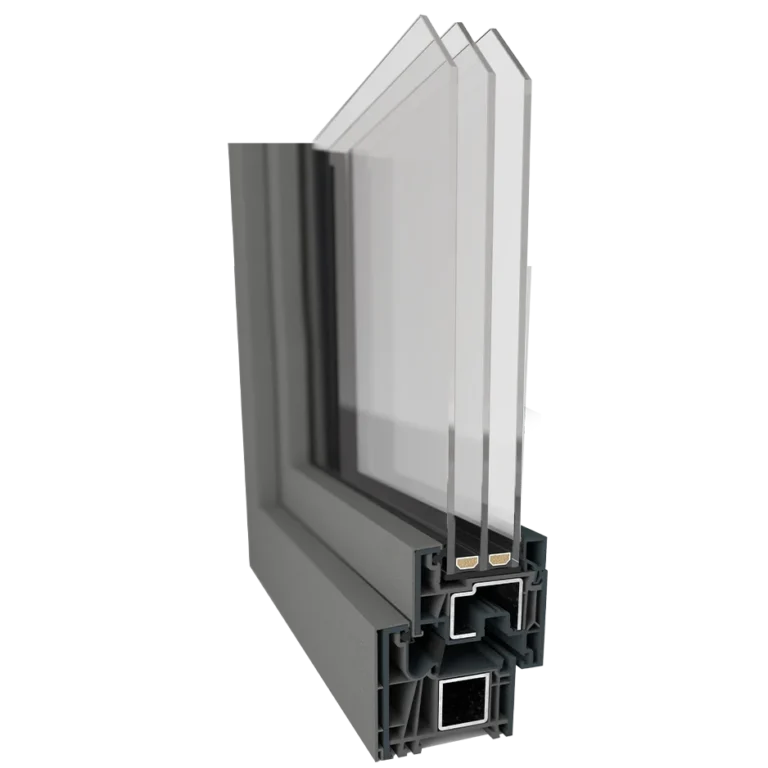

| Frame Material | 6-chamber uPVC, 74mm (2.9") installation depth |
| Seals | 3 gaskets for weathertightness |
| Glazing | Triple-pane, low-E, argon-filled (24–50mm glazing range) |
| U-Factor | As low as 0.14–0.15 Btu/h·ft²·°F |
| SHGC | 0.14 – 0.38, depending on glass package |
| Sound Reduction | Up to 47 dB |

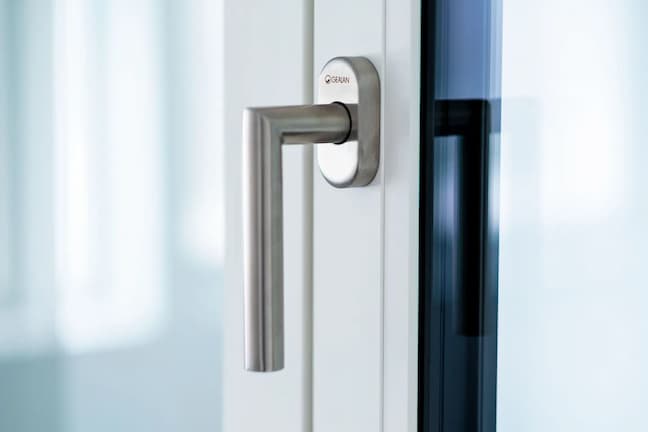

| Hardware | Multi-point locking, European tilt-and-turn hinge, universal sash rebate |
| Finishes | White, Sandstone, Anthracite Grey, Dark Bronze, Black Smooth, plus foil laminates |
| Warranty | 10-year frame, 10-year glass |
Details
Linear is our flagship uPVC window line, built on the Gealan Linear system engineered in Germany. It pairs a modern, squared-off sightline with the technical depth you’d expect from a passive-house-oriented profile: a 6-chamber, 74mm frame, three continuous gaskets, and support for glazing packages up to 50mm thick.
The result is a window that feels architectural rather than off-the-shelf — flat, angular frame faces with a matching interior glazing bead, available in a wide range of factory finishes from crisp White to Anthracite Grey and Black Smooth. Every unit ships with dual-function tilt-and-turn hardware and multi-point locking as standard, so daily ventilation and full-open cleaning access come built in.
Optional GEALAN STV structural bonding further stiffens the sash for larger formats, and an optional attachable nailing fin simplifies new-construction installs. Whether you’re specifying for a quiet, energy-conscious remodel or a full passive-house build, Linear is our go-to recommendation for the Pacific Northwest climate.
