Kombisystem
A proven, passive-house-capable tilt-and-turn window built on the German Gealan S-9000 central-seal system — a deep 6-chamber uPVC frame tuned for top-tier thermal and acoustic performance.
Request a QuoteSpecifications
| System | Gealan S-9000 (Germany) |
|---|---|
| Frame Material | 6-chamber uPVC, 82.5mm (3-1/3") installation depth |
| Seals | Central-seal "Kombisystem" design, up to 3 gaskets |
| Glazing | Triple-pane, low-E, argon-filled (up to 56mm, 58mm with GEALAN STV) |
| U-Factor | As low as 0.15 Btu/h·ft²·°F |
| SHGC | 0.17 – 0.42, depending on glass package |
| Sound Reduction | Up to 45 dB |
| Weather Performance | Rain-tightness class 9A, air permeability class 4, wind load C5/B5 |
| Hardware | Multi-point locking, steel-reinforced sash, European tilt-and-turn hinge |
| Finishes | White standard, GEALAN-acrylcolor colors, decorative films, aluminum cladding shells |
| Warranty | 10-year frame, 10-year glass |
Details

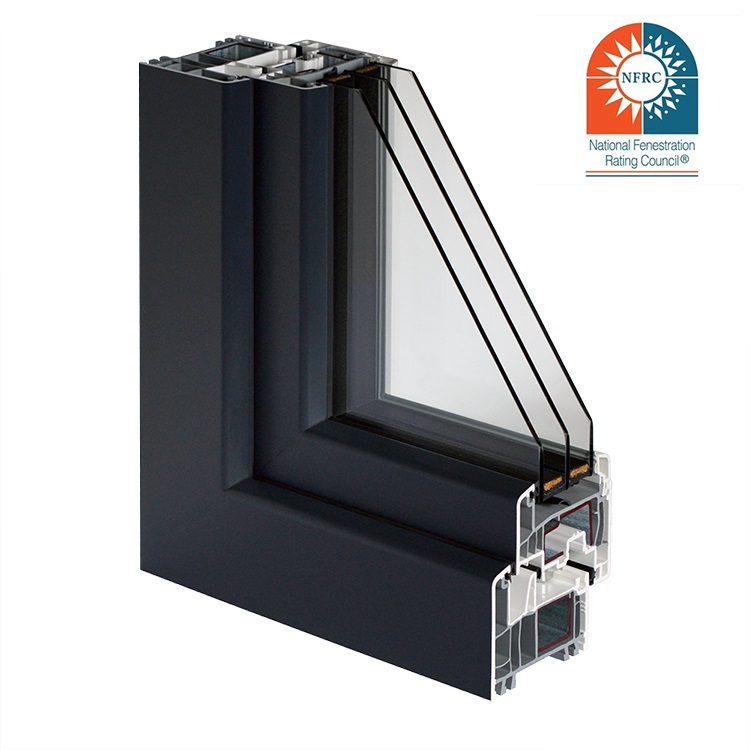

Kombisystem is our workhorse uPVC window line, built on the Gealan S-9000 profile — a deep, central-seal (“Kombisystem”) design engineered in Germany for demanding thermal and acoustic targets. An 82.5mm, 6-chamber frame with up to three gaskets accepts glazing packages as thick as 56mm (58mm with GEALAN’s STV structural bonding), putting it comfortably in passive-house territory.
Beyond the numbers, the S-9000 platform is built for longevity: steel-reinforced sashes, multi-point locking, and weather ratings up to rain-tightness class 9A and wind load class C5/B5 mean it holds up to the wind-driven rain the Pacific Northwest throws at it. Finish options run from a clean factory White to GEALAN-acrylcolor tones, decorative foil laminates, and aluminum-clad exterior shells for a low-maintenance, modern look.
Kombisystem is our recommendation whenever a project calls for proven, high-volume European engineering — remodels, new construction, or anywhere the brief is “efficient, quiet, and built to last.”
